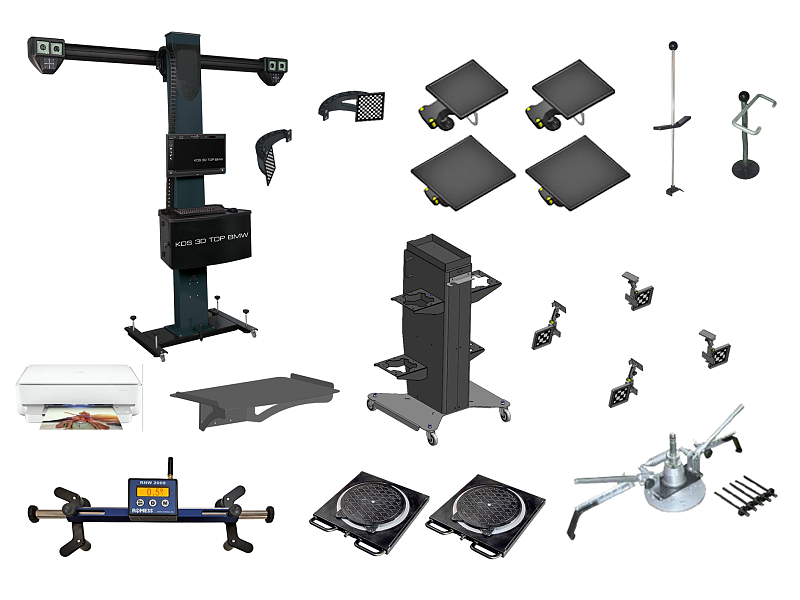

The wheel alignment equipment is equipped with a wireless electronic steering wheel level and corresponds to the newly introduced BMW wheel alignment process from July 2026.
See: SI 03 01 26 (270).

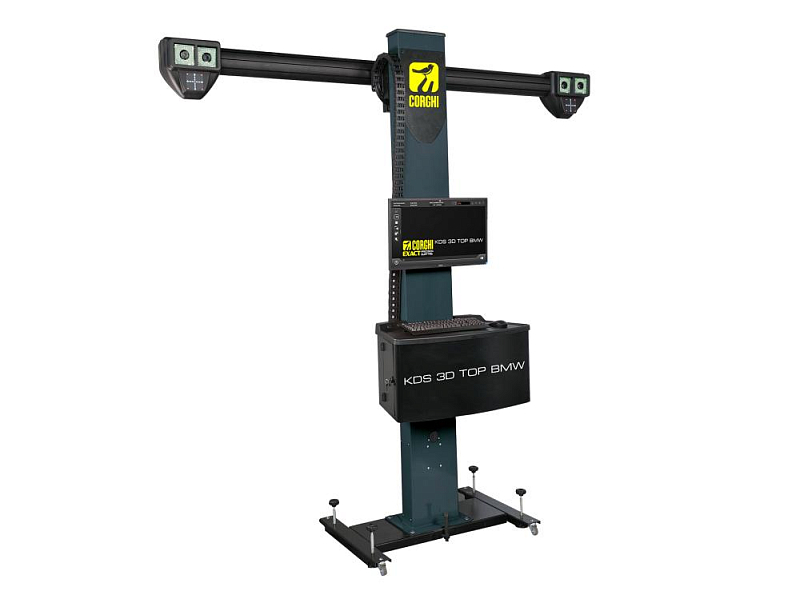

The use of sensitive measuring technology on the wheel is completely replaced by the use of 3D reflectors, which simplifies handling in workshop operation. The digital camera sensors are installed on a movable camera bar with manual height adjustment. This allows the system to be flexibly adapted to different lift heights of wheel alignment
vehicle lifts. Throughout the entire measuring process, the ride height at the vehicle is continuously transmitted to the wheel alignment computer. This ensures that the respectively valid axle alignment target values are determined automatically depending on the current ride height and precisely compared with the recorded actual values.
Special feature:
The wheel alignment equipment is equipped with a BMW quick-clamping device with integrated locating pins. The locating pints are inserted into the designated polycontrol holes of the wheel rims on the vehicle, which ensures direct and precise positioning. This eliminates the need for rim runout compensation (rolling in the vehicle) as part of the wheel alignment process.
